EDC3000 handheld fiber laser welder
DeusVultLux

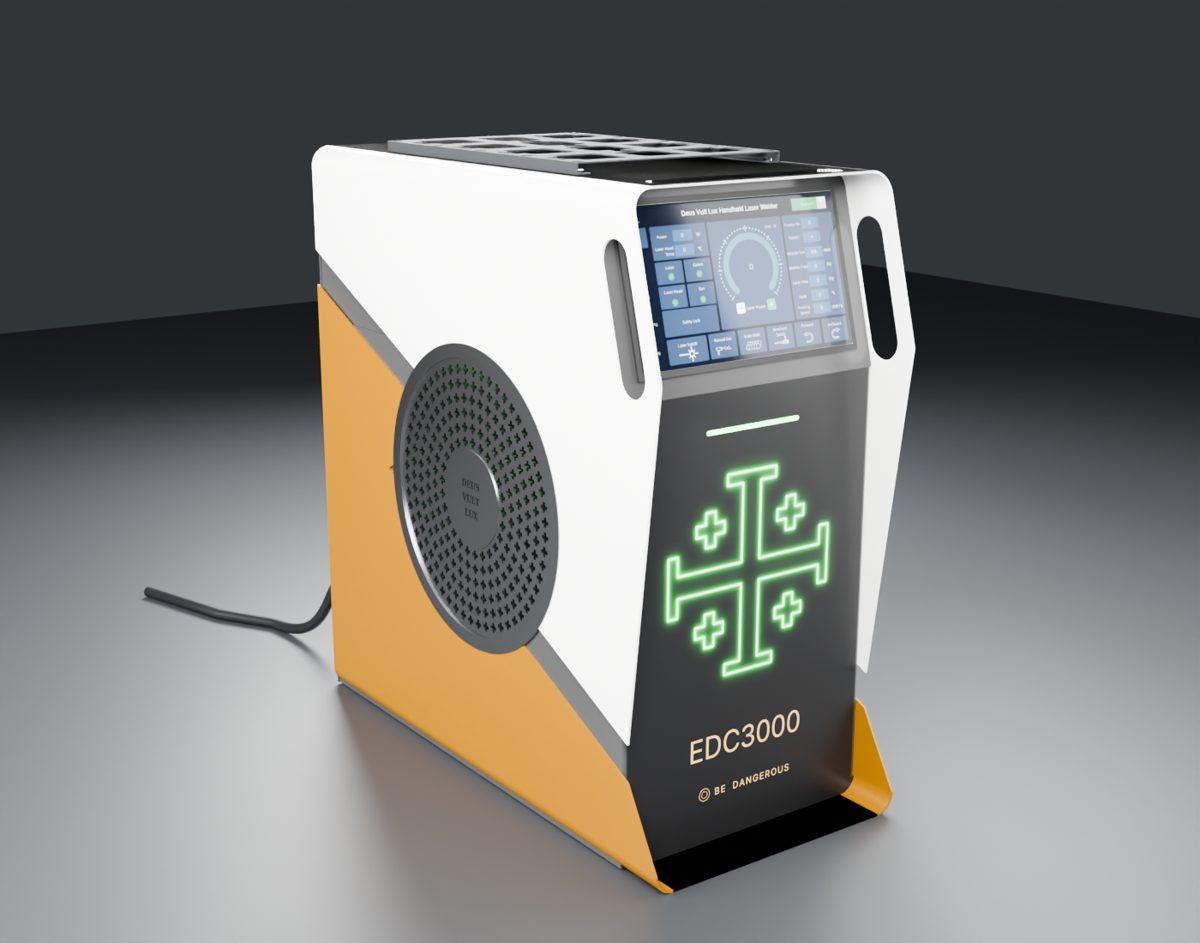

A handheld laser welder built for fabricators who carry their shop with them. Touchscreen control, a docked welding head, and a Packout base on top.
Loading model
Drag to turn the unit
Front panel
Set the job on a full touchscreen.
Laser power, wobble, wire mode and head temperature sit on one screen at eye level. Below it, the illuminated cross shows the unit's state from across the bay.
- DisplayColor touchscreen
- StatusIlluminated cross + LED bar
- SafetyOn-screen safety lock
Dual-circuit refrigerant direct cooling
Two refrigerant circuits. One steady laser.
No water loop, no chiller tank. Refrigerant runs straight to a copper cold plate under the fiber laser source and boils the heat away where it is made, which gives the system a fast thermal response. Two independent circuits share that plate, each with its own compressor and its own condenser behind a side vent.
If one circuit loses efficiency, the other carries the load. The laser source stays inside its safe operating window.
Try it: drop circuit A to 40% efficiency and watch circuit B pick up the load.
Inside circuit A
The compressor is the pump.
Each circuit runs its own sealed compressor. Inside the can, the motor spins an eccentric roller that squeezes the vapour coming back from the cold plate and drives it, hot and under pressure, to the condenser behind the vent.
- CompressVapour from the cold plate is pressurised.
- CondenseFins behind the side vent shed the heat to the air.
- ExpandA valve drops the pressure and the refrigerant turns ice cold.
- AbsorbIt boils on the cold plate, taking the laser's heat with it.
Continuous duty
Rated 7×24, from −30 °C to 60 °C.
The cooling is sized for round-the-clock work, not a duty cycle. A winter night shift on an open yard or an afternoon beside a furnace: the laser source holds its temperature either way.
7×24 hContinuous, no rest cycle
−30 to 60 °COperating ambient
IPX3Spray-tested to 60° from vertical
Handheld head
The head docks on the side, cable coiled behind it.
The welding head rides in a holster on the unit, with its cable stored on the wrap. Pick it up, pull the trigger, and the wire bracket feeds filler right at the nozzle.
- NozzleCopper tip, swappable
- OpticsPull-out protective and focus lens drawers
- WireHead-mounted wire bracket
Rear panel
Every connection on one labeled panel.
Single-phase 208–240 V power, ground, network and wire feed all land on the back, each with its own printed label, so setup on a new site takes minutes.
- HWI
- WIRE FEEDER
- CLAMP
- LAN
- AC 208–240V
Top mount
A Milwaukee Packout base on the lid.
A 14-gauge sheet-metal Packout base is bolted to the top of the shell. Lock a Packout organizer or tool box onto the welder and roll the whole stack to the job.
- Base footprint18.8 × 13 in
- Profile height0.6 in
- Material14 ga sheet steel
Detachable storage
Click a drawer box on. Lift it off at the job.
A Packout 3-drawer tool box locks onto the base and comes off with its side latches. Keep nozzles, protective lenses and filler wire in the drawers, then carry the box to the work and leave the welder parked.
- Box22.1 × 16.2 × 14.3 in
- Drawers3, full width
- MountPackout interlock, red side latches
Specifications
Deus Vult Lux EDC3000
Figures below come from the current design model. Values marked in orange are still to be confirmed.
| Process | Handheld fiber laser welding |
|---|---|
| Laser power | 3000 W (to confirm) |
| Input power | 208–240 V AC, single phase |
| Controls | Front touchscreen, on-screen safety lock |
| Rear connections | HWI, wire feeder, work clamp, LAN, AC power gland |
| Cooling | Dual-circuit refrigerant direct cooling, 2 rotary compressors |
| Duty | 7×24 continuous |
| Ambient range | −30 °C to 60 °C |
| Ingress protection | IPX3 (tested) |
| Top mount | Milwaukee Packout full-size base, 18.8 × 13 × 0.6 in, 14 ga |
| Storage | Detachable Packout 3-drawer tool box |
| Head storage | Side holster with cable wrap |
